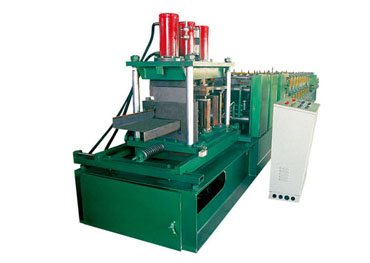

Z Purlin Roll Forming Machine with Post-puncher

Product Description
1. This type of purlin forming machine is able to produce diverse Z shaped purlins to meet specific needs
2. It is fitted with an automatic post puncher and cut-to-length line, simple but good looking
3.This metal forming machine serves to make roll-formed purlin, a kind of structural section used for bear loading purpose in construction.

Main Technical Parameters:

Item	Ref
Material Thickness	1.5-2.5mm
Forming Station	17 steps
Motor power	18.5Kw
Driving type	Hydraulic motor for driving
Weight	7000KG

Components of Whole Production Line
1) 2.5tons decoiler
2) Roll forming machine
3) Hydraulic cutting device
4) Product rack for collecting products
5) PLC control box
