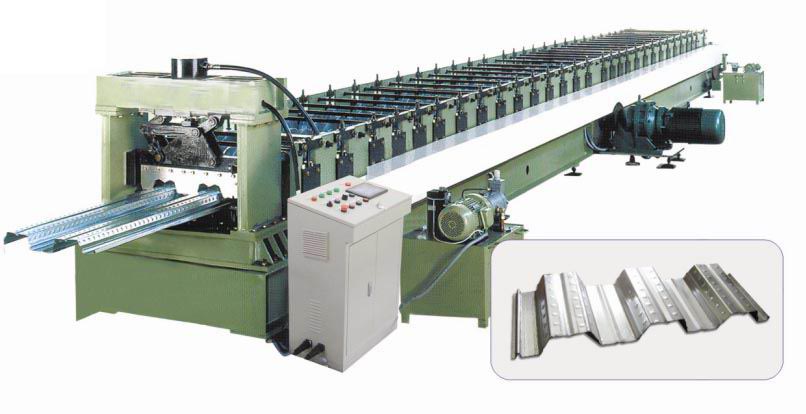

YX688&914 Floor Decking Roll Forming Machine



Detailed Product Description

1. The Chart of Process Flow

decoiling→active feeding→roll forming→measuring length→cutting to length→product to stand



2. Main Equipment

hydraulic decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.



3. Technical Parameters



1) Manual inner tight decoiler

a. coil inner diameter: 470mm-540mm

b. max width of coiling: 1000/1200mm

c. max weight of loading: 6000kg

d. hydraulic station power:4kw

e. motor power: 3kw

f. working pressure: 10Mpa



2) Main forming machine

a. number of forming steps: 22 steps

b. material of shaft: 45# steel adjustable treatment.

Outer diameter: 80mm

c. material of roller15 GCR bearing steel treatment HRC58-60

d. main motor power: 15kw

e. forming speed: 8-10m/min

f. stand 350# steel welding

g. the plating chromium of roller surface0.05mm



3) hydraulic cutter

a. material of blade:Cr12 with quenched treatment60-62

b. cutting system: adopt advanced hydraulic drive, automatic cut afterforming,  stop cutting off



4. Electrical System

The main computer (PLC): Delta



5. Hydraulic System

1). Adopting advanced hydraulic system of TaiWan



2). Power:5.5KW



6. The whole machine consists of:

Hydraulic decoiler: 1set;

main forming machine: 1 set;

hydraulic system: 1 set;

electricalsystem: 1 set;

product rack: 3 set.
