standing seam roofing machine standing seam metal roof panel machine bemo style standing seam machine

Main Technic Parameter:

Size	580016001400mm
Weight	6000KGS
Voltage	380V/50HZ/3PH
Motor Power	7.5KW*2 sets
Hydraulic Power	2.2KW
Forming Steps	14
Working Speed	8-14m/min
Height of Roofing	65mm
Effective Width	400mm,425mm
Feeding Material Width	575-578mm,600-603mm
Thickness for Aluminum Sheet	0.8-1.2mm
Thickness for Steel	0.6-1.0mm
Min. Width of tapered roofing	250mm
Min.Length of tapered roofing	1000mm
Cutting,Forming Tolerance	±2mm

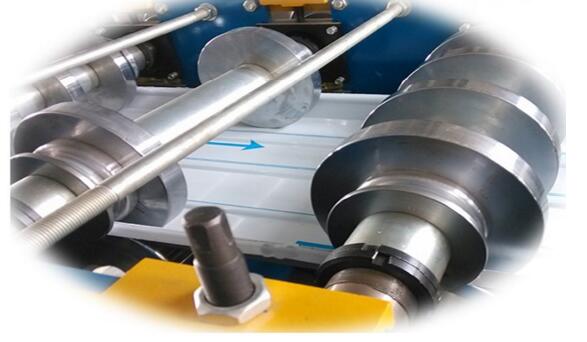

Roller material	High grade 45# forged steel, Plated hard chrome and polished all the rollers
Material of shaft	High grade 45# forged steel
Sprocket wheel	45 steel high-frequencies quench
Cut-off system	Hydraulic cutting device
Material for Blade	Cr12 mold steel with quenched treatment 60-62°C
Material for frame of machine	Fine welded structural steel;
Material for producing roofing	Aluminum Sheet,PPGI Steel and G.I. Steel
Painted Color	Customization

Main Accessories:

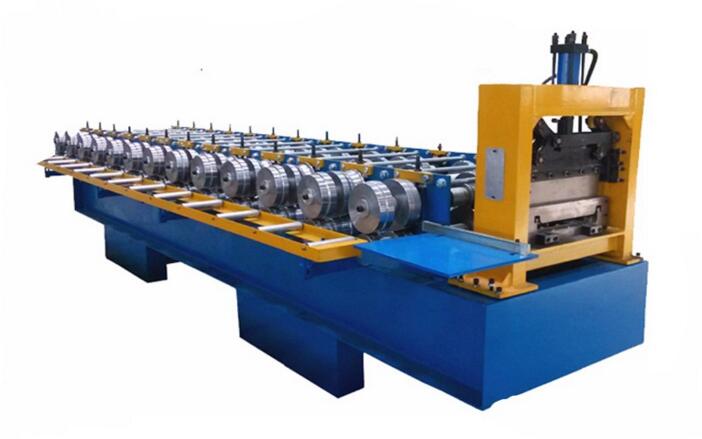

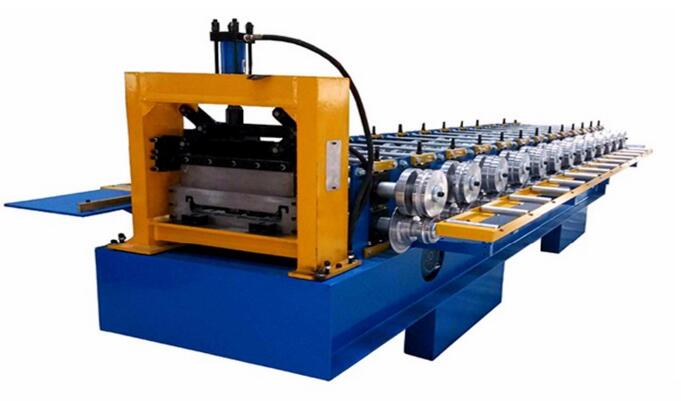

(1) Main Forming Machine for making Straigt and Tapered Standing Seam Roofing;
(2) 5 Tons*600mm Uncoiler ;
(3) Leveler closed to feeding position (7 Rollers);
(4) Hydraulic System;
(5) PLC Computer Controlling System With Touch Screen ( Brand:Schneider );
(6) Hydraulic Forming Cutter(2 sets cutters,one set for YX66-400,one set for YX65-425);
(7) Device for making tapered standing seam roofing;
(8) Safety Cover;
(9) Auto Seamer (2 set, Voltage: 220V/50HZ/1PH, 3 Steps for seaming straight roofing sheet);
(10) Hand Seamer(3 PCS);
(11) Run out tables(3 PCS);
(12) Tools;
(13) Operation Manual.
