Size

 15000*2200*1700mm

 Weight

 18000KGS

 Voltage

 220V/60HZ/3PH

 Hydraulic Motor Power

 22KW

 Forming Steps

 23 steps

 Working Speed

 15m/min

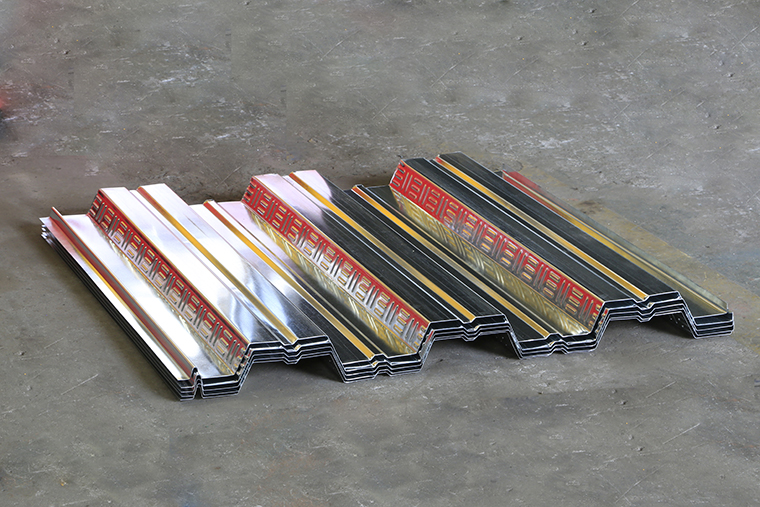

 Rib Height of Decking

 51mm

 Effective Width

 750mm

 Material Width

 10000mm

 Thickness for common use and test

 machine

 0.7-1.2mm ( material: GI Steel 275-375Mpa )

 Tolerance

 ±2mm

 Roller material

 45# steel with hot treated

 Material of shaft

 High grade 45# forged steel

No

Items

Quantity

Remarks

1

Manual/Hydraulic Uncoiler

1set

Up to customer

2

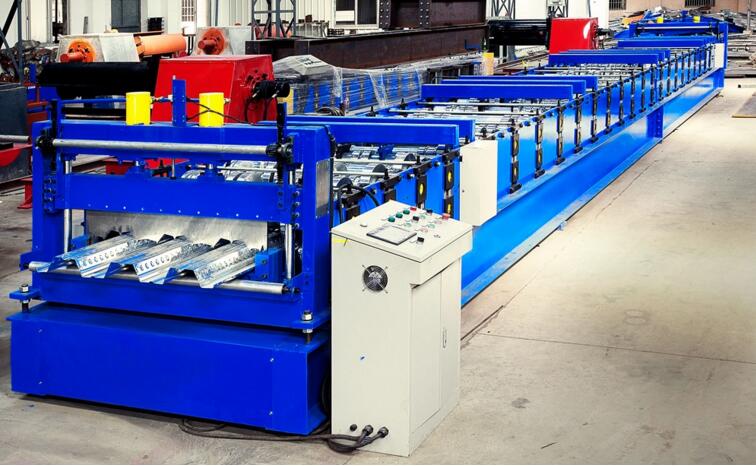

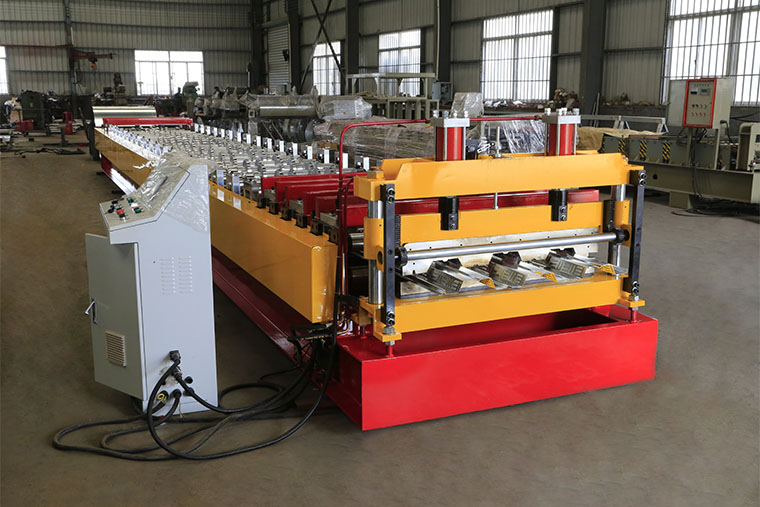

Main forming machine

Pre-cutting device

1set

Up to customer

Feeding device

1set

Hydraulic system

1set

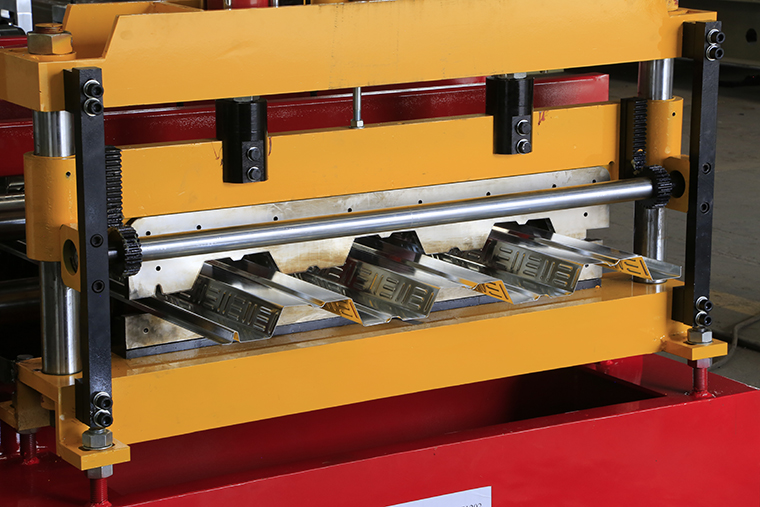

Roll forming system

1set

Post cutting device

1set

Protective cover

1set

Up to customer

3

PLC control system with touch screen

1set

4

Run out table

4pcs

Up to customer
