Model

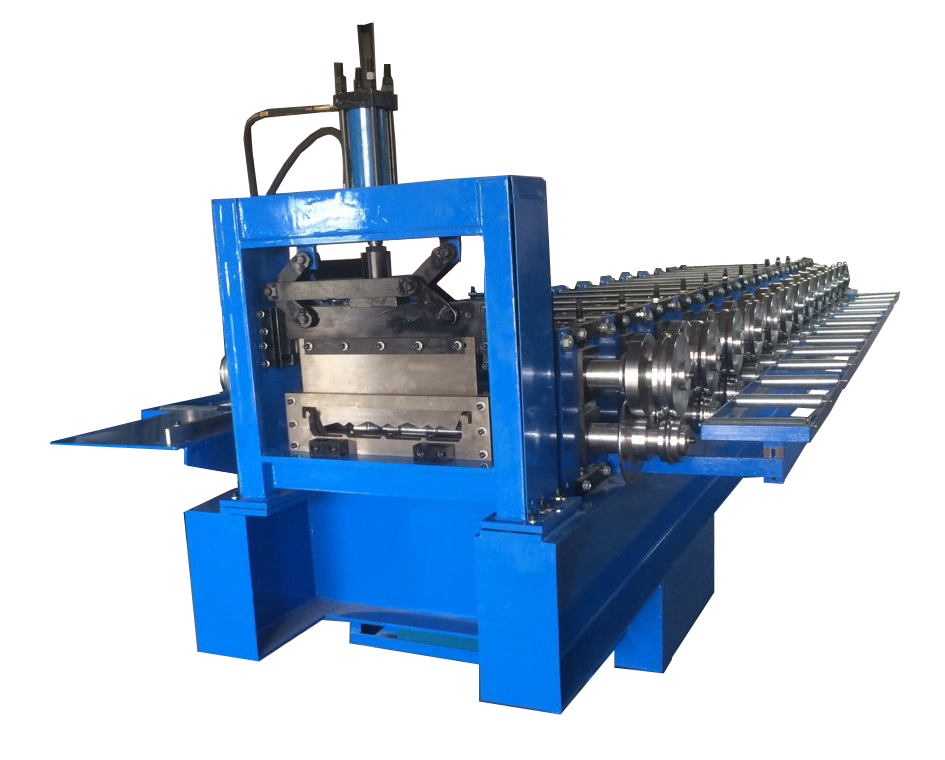

YX65-400/425 Xiamen aluminum stand seam roof machine
Product Description

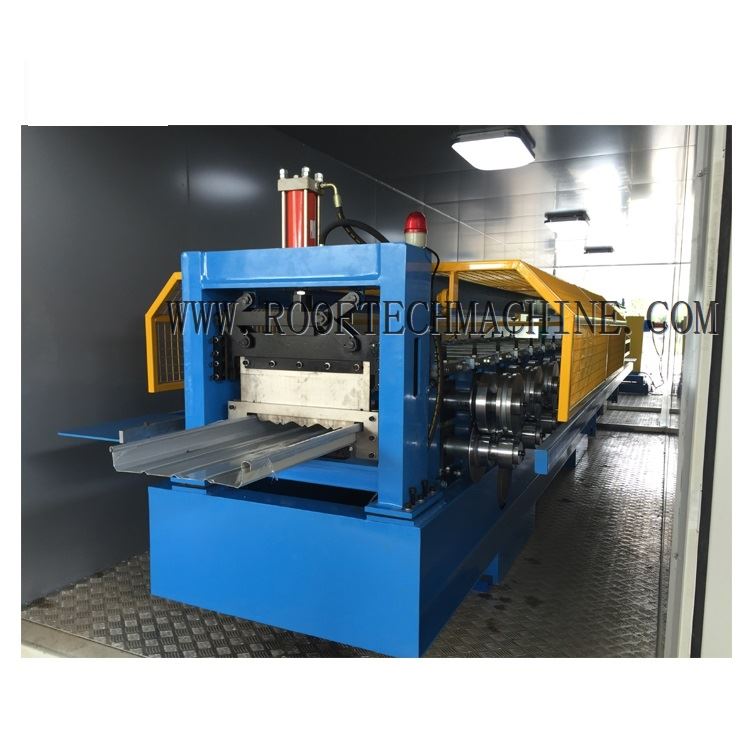

This YX65-400/425 Xiamen aluminum stand seam roof machine is suitable for forming 0.7~1.2mm thickness aluminum sheet. The whole machine is small and layout in 20ft containers. You can take it any place to produce the roofs.

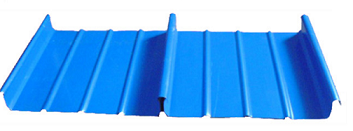

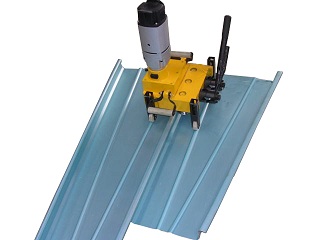

The product produced by these series machine is used for roof in railway station, hotel and other buildings. With this product for stand seam shape roof, it is with the advantage of lower cost, soon fixture and uneasy damaged. Nomally, it is matched with electric seaming machine, concave and convex shape curved machine, it is new design and popular in the market right now.
Main Technical Parameters
|
Technical Parameter |
Description |
|
Material Thickness |
0.7-1.2mm |
|
Material Width |
575/600mm |
|
Effective Width |
400/425mm |
|
Shaft diameter |
Φ75mm |
|
Manufacture material |
40Cr for rollers, H-Beam for frames |
|
Forming Station |
13steps |
|
Producing speed |
0-18m/min |
|
Motor power |
7.5Kw*2 |
|
Weight |
7000KG |
PLC Control System
Control the cutting length & quantity automatically.
Combined with：PLC, inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±3 mm
Control voltage 24V
Whole Producing Line Components
1)Roll forming machine

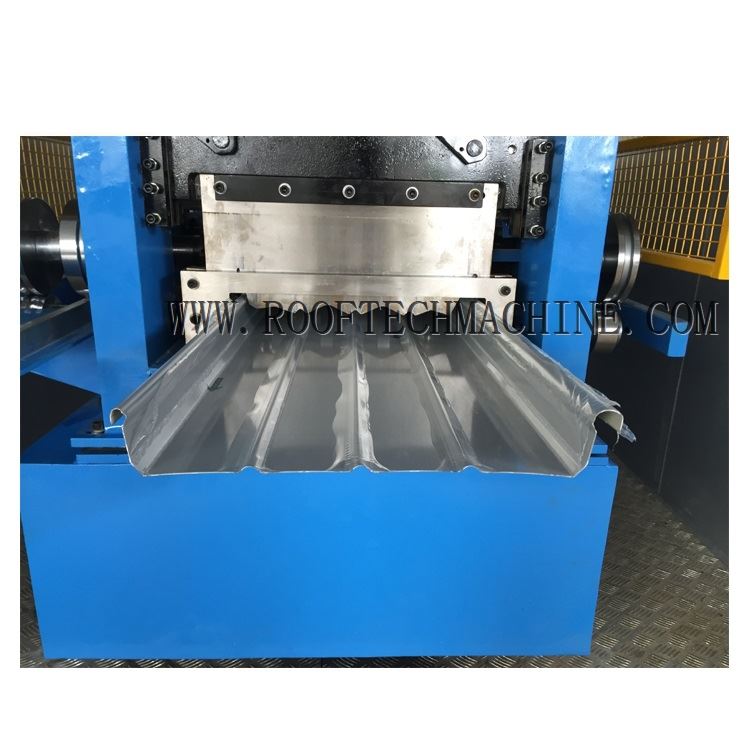

2)Hydraulic cutting device
3)Product rack for collecting products
4)PLC control box

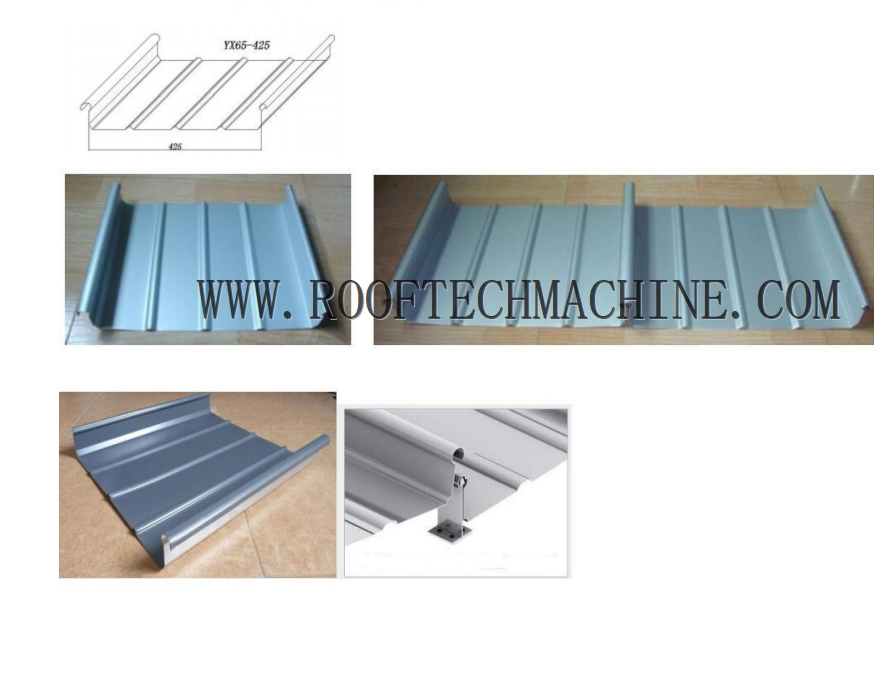

Profile design drawing
