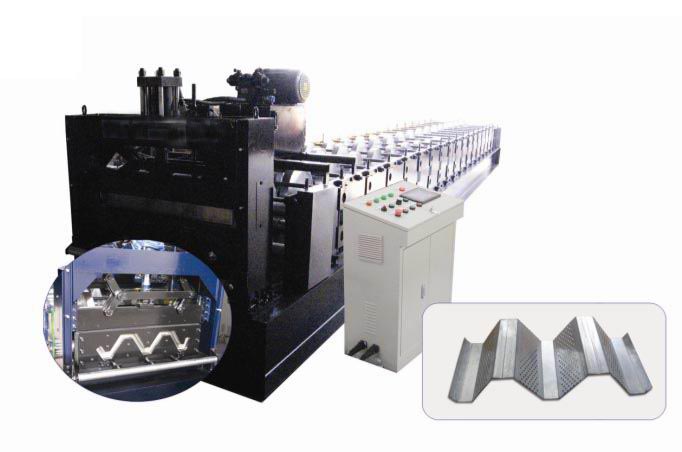

Introduction of Steel Decking Machine YX130-600
This decking machine is a kind of steel floor decking machine for making steel structure panels. Equipped with the professional technology support and PLC Computer Controlling System, this metal forming machine is of easy operation and high quality. This steel decking machine is widely used in constructing skyscraper, residential buildings and bridges.
Main Technical Parameters:
|
Technical Parameter |
Description |
|
Material Thickness |
0.8-1.2mm |
|
Material Width |
1000mm |
|
Effective Width |
600mm |
|
Forming Station |
18 steps |
|
Motor power |
18KW |
|
Weight |
7000KG |
Whole Producing Line Component:
1) 5tons decoiler
2) Roll forming machine
3) Hydraulic cutting device
4) Product rack for collecting products
5) PLC control box
