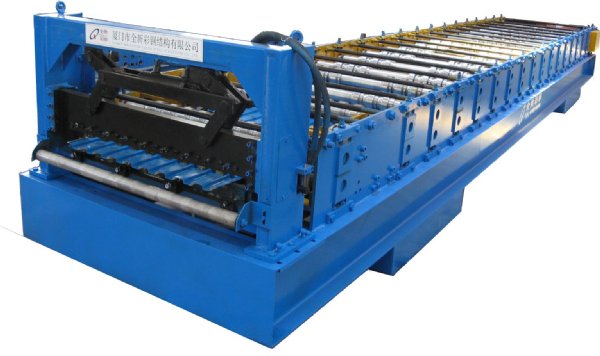

Roll Shutter Machine
Model: YX15-85-765
Descriptions of Roll Shutter Machine
1. It is a type of metal rolling machine that features fast installation, low noise and easy to maintain
2. It serves to make roller shutters which used as doors of big buildings
3. A wide variety of roller shutters of different profiles and styles are available
Main Technical Parameters of Roll Shutter Machine
| Item | Ref. |
| Material Thickness | 0.4-0.8mm |
| Material Width | 1000mm |
| Effective Width | 765mm |
| Forming Station | 18 steps |
| Motor power | 5.5Kw |
| Weight | 5000KG |
Components of Whole Production Line
1) 5tons decoiler
2) Roll forming machine
3) Hydraulic cutting device
4) Product rack for collecting products
5) PLC control box
