5Ton*1250mm Hydraulic un-coiler with coil car

Hydraulic system to expand coil inner hole；Pump motor：3.0KW；
Frequency Inverter to regulate turn speed；Motor：5.5KW
Coil Inner-diameter=510±30mm. Coil Outer-diameter Max. 1300mm；
Taper wedge expanding system
Load Capacity: Max. 5 Tons; Coil Width Max. 1250mm；
Automatic stopping device with limited switch as assistance to control stop/start rotation
Up/Down stroke of Coil Car: Max. 350mm
Forward/backward stroke of Coil Car: Max. 2000mm
Self-contained electric controller, out of control system of the complete line


Entry roller & Dual Pre-shearing device

Smart cut control, to cut off the end of the final piece of sheet only, Working thickness up to 0.8mm

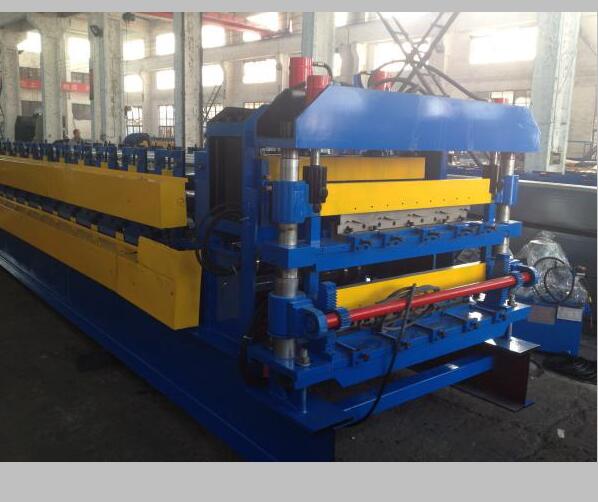

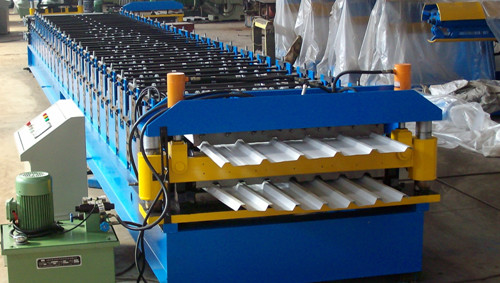

Dual Layer Cold Rolling Mills

Gear/Sprocket driving; Dual Levelling
Upper Level for  YX31.75 PBR, 17 step to form
Lower Level for YX938 roof profile, 18-step to form
Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
Shafts Diameter=ф75/95mm, Precision Machined, fine Polished
Main motor =11KW, Frequency speed control
The two levels can’t be run at the same time
Manual Clutch to switch the driven system
Max Line speed of roll Former: Approx. 15-18m/min
Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside


Hydraulic Cutting Device

Stop to cut, Post cut, no blanking cut

PLC Control System

Control the quantity & cutting length automatically
Combined with: PLC (Siemens), Touch Screen (Siemens), Encoder (Omron), etc
Cut-to-length tolerance≤±2mm
24V Control voltage
Portable controller with forward/backward/emergency stop buttons


Product Rack

Un-powered, 3 units
