Dimension

 5800*1700*1500mm

 Weight

 7000KGS

 Voltage of Motor

 380V/50HZ/3PH, or as per your requests

 Main Motor Power for Running

 7.5KW*2 sets

 Hydraulic Power for Cutting

 2.2KW

 Forming Steps

 13

 Working Speed

 0-15m/min

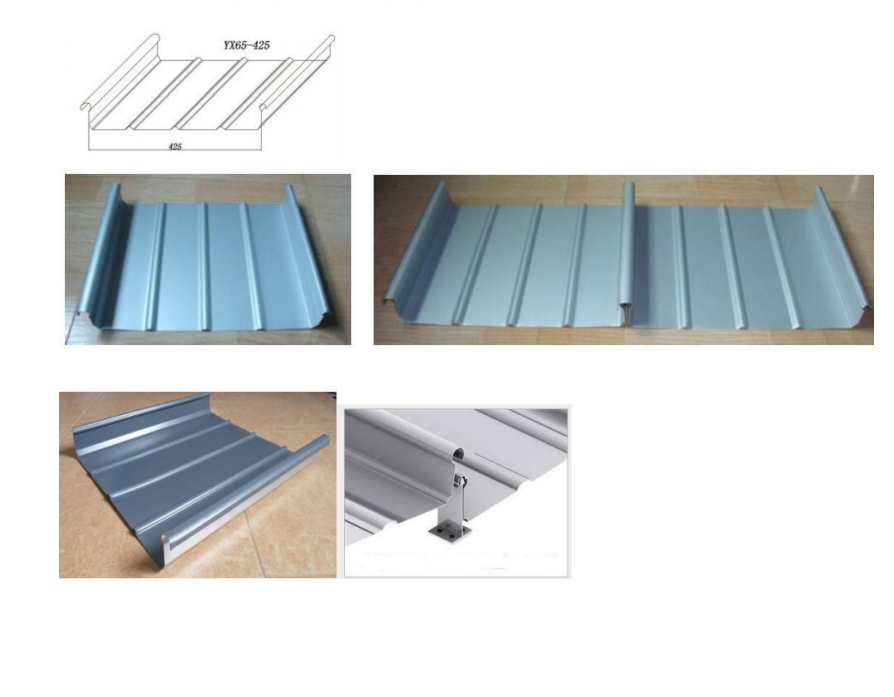

 Height of Roofing

 65mm

 Effective Cover Width

 400mm,425mm

 Feeding Material Width

 575-578mm, 600-603mm

 Thickness for Al Sheet

 0.8-1.2mm

 Thickness for Steel Sheet

 0.6-1.0mm

 Min. Width of Tapered Roofing

 250mm

 Min. Length of Tapered Roofing

 1000mm

 Cutting, Forming Tolerance

 ±2mm

 Roller material

 45# steel with machining----Fine Machining

---Polishing---Plated Chrome---Polishing;

 Material of shaft

 High grade 45# forged steel

 Shaft Diameter

 85mm;

No

Items

Quantity

Remarks

1

Manual/Hydraulic Uncoiler

1set

Up to customer

2

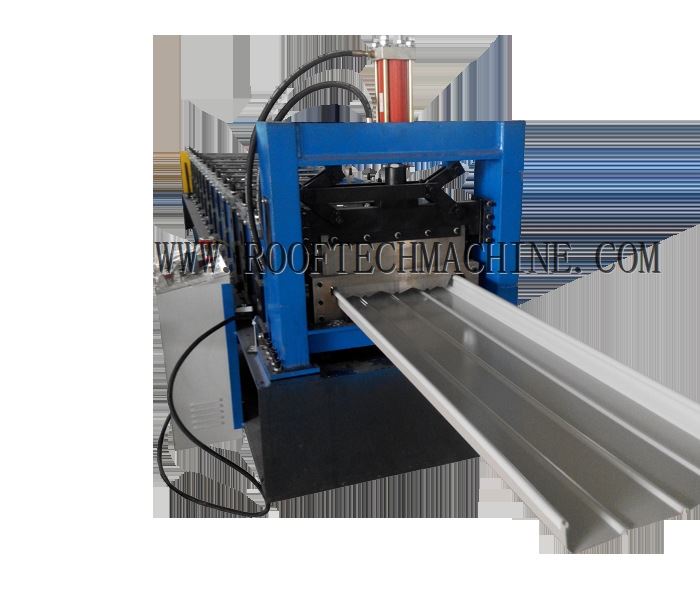

Main forming machine

Pre-cutting device

1set

Up to customer

Feeding device

1set

Hydraulic system

1set

Roll forming system

1set

Post cutting device

1set

Protective cover

1set

Up to customer

3

PLC control system with touch screen

1set

4

Run out table

4pcs

Up to customer
