Model: YX30-183.3-1100

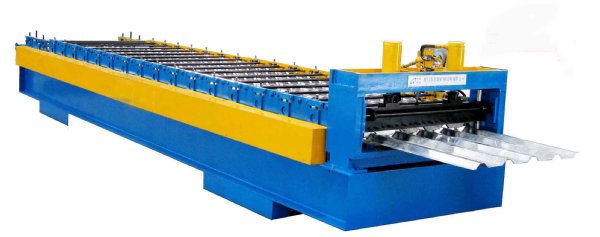

Descriptions of Cold Roll Forming Machine
1.Enjoy boasts abundant experience of researching, developing, and manufacturing this kind of metal forming machine
2.It features a well-arranged structure, easy handling, high efficiency, superior flexibility and minimum costs
3.Our quality products and excellent service have gained us good reputation from both home and abroad

Main Technical Parameters of Cold Roll Forming Machine

Item	Ref.
Material Thickness	0.3-0.8mm
Material Width	1250mm
Effective Width	1100mm
Forming Station	18 steps
Motor power	5.5Kw
Weight	5000KG

Components of Whole Production Line
1) 5tons decoiler
2) Roll forming machine
3) Hydraulic cutting device
4) Product rack for collecting products
5) PLC control box
